EMBox
Industrial Edge Computing for Positioning, Sensor Fusion and Autonomous Systems
EMBox
Compact GNSS RTK and Heading Solution
EMBox combines high-precision GNSS technology, real-time edge processing and secure data logging in a compact industrial platform for autonomous systems, robotics, railway and validation applications.

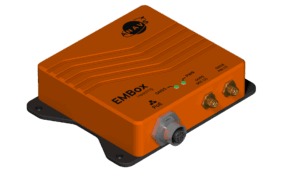

The new ANavS EMBox is a compact and robust system for high-precision GNSS RTK and heading applications.
At its core, the Septentrio MOSAIC-X5 or MOSAIC-H chip enables RTK and dual-antenna operation for highly accurate position, heading, pitch, and roll determination – perfect for dynamic and static (heading with H-variant) applications such as surveying, marine systems, or stationary platforms.
Key Features:
- High Accuracy: Position accuracy of 1cm RMS and Heading accuracy down to 0.08° RMS (with 1.8 m antenna spacing).
- High Output Rate: 100 Hz speed/position output
- Precise Timing: PPS output with 5 ns accuracy.
- Easy Integration: Ethernet communication and 9–36 V power supply via PoE.
- Industrial-Grade: CE and RoHS certified, vibration- and temperature-resistant according to MIL-STD-810G (–40 °C to +85 °C).
- Reliable: MTBF of approx. 128,000 hours.
- Export-Friendly: Classification EAR99 – no export license required for most countries.

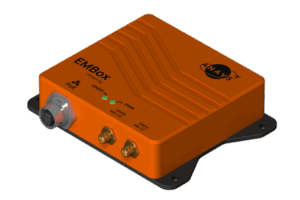

With its milled aluminum housing, the EMBox meets IP67 protection standards, making it suitable for harsh outdoor environments.
Typical Applications:
- Autonomous Driving: Reliable positioning and onboard processing for development and validation.
- ADAS Validation: Ground-truth generation and sensor synchronization.
- Robotics: Real-time localization and sensor fusion.
- Railway Systems: Positioning and monitoring for rail applications.
- Maritime Navigation: Reliable navigation in challenging environments.
EMBox at a Glance
Problems adressed
- GNSS outages and degraded positioning
- Sensor integration complexity
- Real-time data processing requirements
- High-volume data logging challenges
- Communication latency and cloud dependency
- Reliable operation in harsh environments
Core Technologies
- Septentrio GNSS Technology
- RTK / PPP Positioning
- Multi-Sensor Integration
- ROS2 Middleware
- Edge AI Processing
- Secure Data Logging
- Ethernet Communication
- Fleet Management Connectivity
Applications
- Autonomous Driving
- ADAS Validation
- Robotics & Automation
- Mobile Mapping
- HD Mapping
- Railway Systems
- Maritime Navigation
- Research & Development
Why EMBox?
Reliable Edge Computing
Process GNSS and sensor data directly onboard with minimal latency.
Flexible System Integration
Connect GNSS, IMUs, LiDARs, cameras and other sensors using standard interfaces.
Real-Time Performance
Enable deterministic processing for autonomous and safety-critical applications.
Scalable Deployment
Use the same platform across development, testing and fleet operations.
Secure Data Logging
Capture synchronized navigation and sensor data for validation and analysis.
Online Ordering
Our products are available at DigiKey and can be ordered online at any time:
