M.2 GNSS Cards
M.2 GNSS Cards
For precise information on position, speed and location
Can be easily integrated into your application
M.2 GNSS Cards
The ANavS M.2 MOSAIC GNSS Receiver Cards are part of the ANavS Smart Module family, designed for integraton into industrial PCs and development boards. The M.2 MOSAIC Receivers provide a high-rate, precise GNSS soluton for both positon and attitude.
The M.2 Key E format is a common standard for industrial PCs, embedded PCs or development boards (e.g. Nvidia Jetson boards).

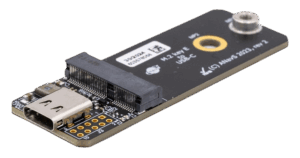

With adapter boards the cards can also be used with USB or Mini PCIe.
ANavS® GNSS receiver cards can be equipped with the following chipsets:
- MOSAIC-X5 (Base module)
- MOSAIC-H (Heading-Version)
- MOSAIC-T (Timing-Version)
Application
With a compact M.2 3030 Key-E form factor and support for multi-constellaton, multi-frequency GNSS tracking, the ANavS M.2 MOSAIC Cards are suitable for a wide range of applications, including:
- Drones
- Automotive
- Railway
- Survey and Mapping
- Automation
The versatility of the ANavS M.2 MOSAIC Cards makes this receiver family a powerful and comprehensive solution for OEMs requiring a reliable and accurate GNSS system.
Technology
The ANavS M.2 MOSAIC Cards use advanced GNSS tracking with support for Galileo, GPS, GLONASS, and BeiDou, ensuring comprehensive multi-constellation and multi-frequency coverage.
Featuring high-rate RTK technology (up to 100 Hz), the receivers enable precise real-Ɵme positioning. The ANavS M.2 MOSAIC family of modules is designed for seamless integration with external IMUs, enhancing the stability and reliability of the positioning solution in demanding applications.
Advanced technology inside:
- AIM+
- LOCK+
- AP-ME+
- IONO+
System configuration
The M.2 MOSAIC GNSS Receiver Card features a modular design compatible with M.2 Key-E slots on various industrial and embedded systems. It supports both USB and UART interfaces for data communication and can be configured for single- or dual-antenna setups.
The system is compatible with standard GNSS software tools, and configuration is easily performed via a web interface – simplifying setup and management without requiring additional software.
M.2 MOSAIC Product Family

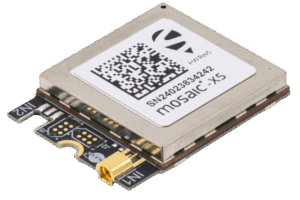

MOSAIC-X5
Base module

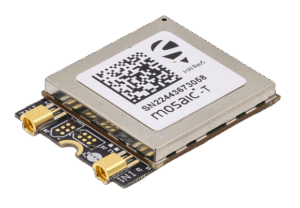

MOSAIC-T
Timing version with 1
antenna and optional Oscilalator input

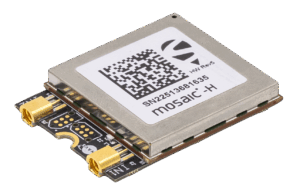

MOSAIC-H
Heading version with two antenna connectors
Key Facts MOSAIC
- No compromises: The best of both worlds: small sized with solid performance.
- High update rates (>100 Hz) and low latency, both are crucial for control systems of any type of autonomous applications.
- High accuracy centimetre level positioning. Multi-constellations and multifrequency. Full L2 support via P(Y) code.
- Advanced technologies inside: Septentrio’s GNSS+ toolset enables accuracy and reliability in the toughest conditions through:
- AIM+ the most advanced on-board interference mitigation technology on the market (narrow and wide band, chirp jammers).
- LOCK+ for robust tracking during high vibrations and shocks.
- APME+ multipath mitigation to disentangle direct signal and those reflected from nearby structures.
- ONO+ provides advanced protection against ionospheric disturbances.
- Allowing you to carry on with the highest possible efficiency.
Online Ordering
Our products are available at DigiKey and can be ordered online at any time:
