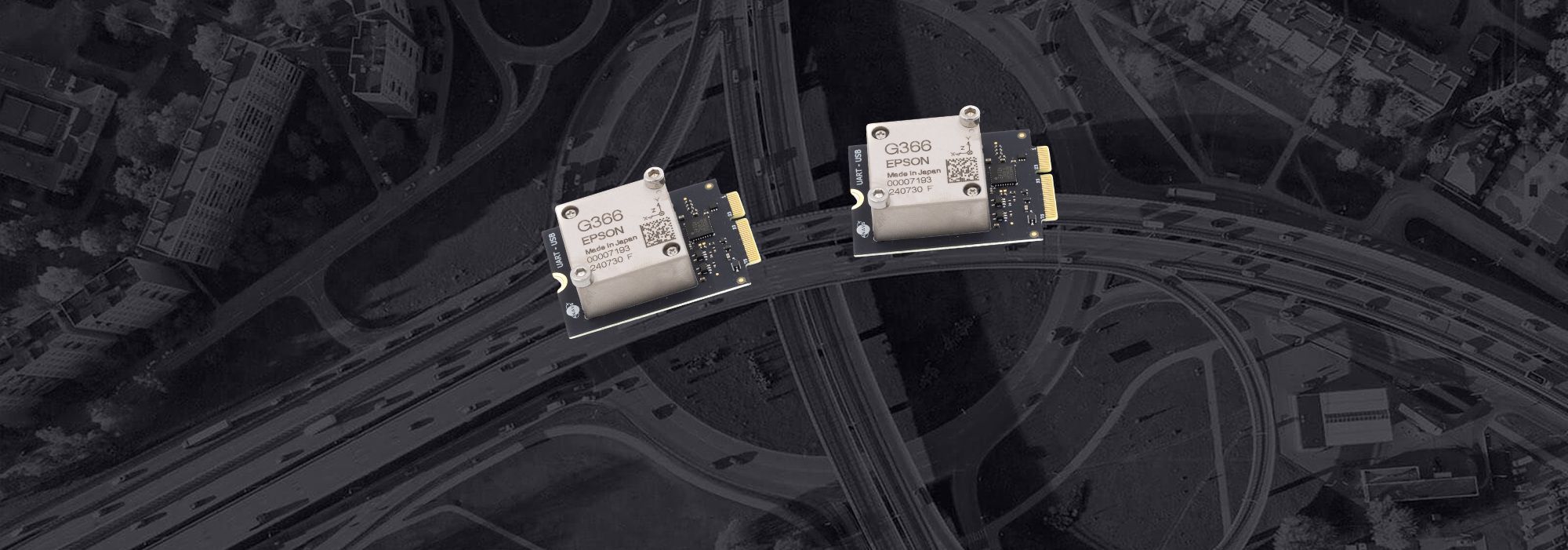

M.2 IMU Cards
M-G366, M-G370
For high-precision motion data, even in a challenging environment
Can be easily integrated into your application
M.2 IMU Cards
Reliable motion detection for every application
Our high-precision inertial measurement units (IMUs) are the backbone of robust navigation solutions – especially when GNSS signals are disturbed or unavailable. Whether in autonomous vehicles, robotics or mobile mapping systems: ANavS® IMUs continuously provide reliable data for position, speed and acceleration detection.

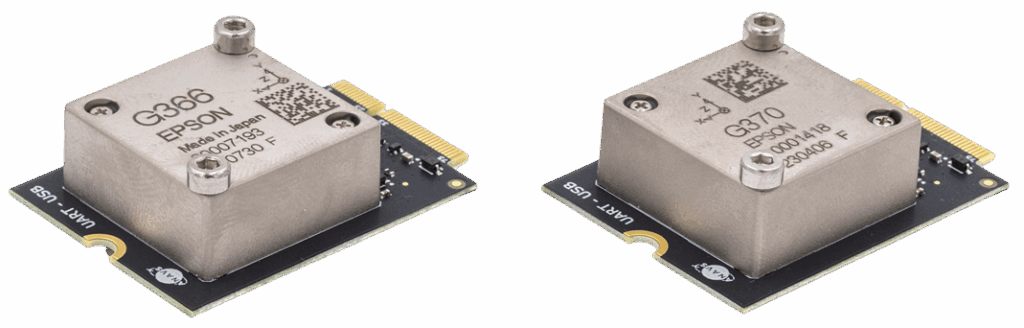

Available with Epson M-G366 and M-G370. On request also only adapter without IMU.
Your benefits at a glance:
🔹 Wide range of models – from cost-efficient MEMS IMUs to high-precision FOG IMUs
🔹 Interface: USB, Event In- and Output
🔹 Robust performance – temperature-compensated and vibration-resistant
🔹 Ideal for sensor fusion – seamless combination with GNSS and odometry for dead reckoning
Our IMU cards are optimised for real-time sensor fusion in combination with ANavS® embedded systems – for precise and stable navigation in any environment. Detailed performance data and specifications can be found further down under the heading „Download“.
Application

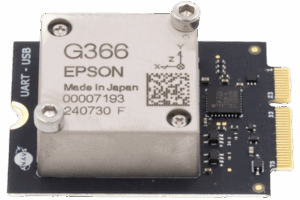

The ANavS M.2 IMU card provides a convenient way to use high-grade industrial EPSON IMUs in any system with a M.2 key E interface.
The widely used M.2 form factor allows direct integration in embedded systems and processing platforms. It can further be used with adapters, including the ANavS M.2 to USB-C adapter.
Specific applications include:
- Automotive
- Rail
- Maritime
- Measurement Equipment
Performance
M-G370 / M-G366
- Low-Noise, High-Stability
- Low power consumption: <50 mA at 3.3 V
- Temperature Range: -40…+85 °C
M-G370
- Gyro Bias Instability: 0.8 °/h
- Angular Random Walk: 0.06 °/√h
- Initial Bias Error: 0.1 deg/s (1σ) / 2mG (1σ)
M-G366
- Gyro Bias Instability: 1.2 °/h
- Angular Random Walk: 0.08 °/√h
