M.2 G5 GNSS Cards
M.2 G5 GNSS Cards
Ultra-compact high-precision GPS/GNSS receiver module
Can be easily integrated into your application
Small, efficient, precise!
The ANavS M.2 G5 GNSS Receiver Cards are part of the ANavS Embedded Module family, designed for integration into industrial PCs and
development boards. The M.2 GNSS cards provide a high-rate, precise GNSS solution for both position and attitude.
The M.2 Key E format is a common standard for industrial PCs, embedded PCs or development boards (e.g. with SMART variant in Nvidia Jetson boards).
This new generation of the Septentrio Mosaic family delivers quad-frequency RTK and Heading solution in an ultra-compact, low-power design – perfect for high-performance applications.
✅ Multi-constellation & multi-frequency with all-in-view tracking.
✅ RTK & heading with full raw data output (incl. Galileo HAS).
✅ Ultra energy-efficient – ideal for IoT, robotics & drones.
✅ Easy to integrate & optimized for automated assembly.
Whether as a standalone module or in combination with our IMUs and sensor fusion solutions – the GNSS cards from ANavS® offer maximum flexibility and reliability for your navigation applications.
Description
Ideal for size-constrained applications
Septentrio mosaic-G5 P3™ is an advanced multi-frequency GNSS receiver module in a low-power surface mount package. It offers high-accuracy positioning and attitude, ideal for autonomous navigation. With GNSS+ technology for resilience and reliability, Septentrio is now offering a performance benchmark in mass market GNSS positioning.
This module has low and predictable latency needed for stable and accurate control systems. It is easy to integrate and is compatible with popular open-source autopilots. It is ideal for drones, robots, autonomous systems and space-constrained devices which require accurate positioning with a high degree of reliability.
Applications
We offer two options
Application Overview

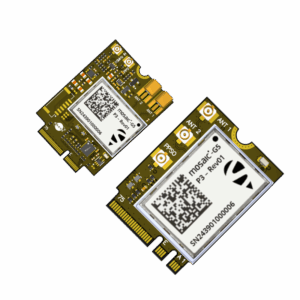

Mosaic G5 SMART
Mosaic G5 PRO
- Ideal for industrial PCs such as Nvidia Jetson
- Small form factor with M.2 key A+E
- Available in multiple variants: P1, P3, P3H
- Will be available as Open source project
- Equipped with high-quality MMCX connectors for GNSS antennas.
- Compatible with all GNSS antennas with no external adapters (5V LNA voltage).
- Additional connector for UART and timing signals.
- Available in multiple variants: P3, P3H
We see enormous potential in this new platform for interconnected devices, civilian drones, robotics and autonomous systems with a demand for compact, low-power, yet highly reliable positioning, even in the most challenging environments.
Online Ordering
Our products are available at DigiKey and can be ordered online at any time:
