M.2 USB-C Adapter Boards
M.2 USB-C Adapter Board
Maximum flexibility for your M.2 modules
Compatible. Compact. Flexible use for all USB 2.0 applications.
Full compatibility for versatile M.2 applications

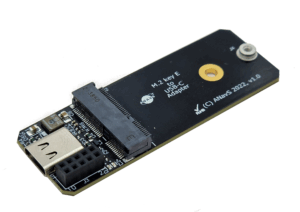

The M.2 USB Type-C adapter board makes it easy to connect our powerful M.2 GNSS and IMU modules to any system with a USB 2.0 port – whether for development, testing or series applications.
Connect. Evaluate. Get started.
Whether for prototyping or series integration, this adapter allows you to quickly and reliably integrate our M.2 cards (as well as many third-party cards with USB 2.0 and Key-E interfaces). The adapter supports both 30 mm and 40 mm long M.2 cards.
Highlights at a glance
- Full USB 2.0 compatibility
- Access to UART, reset, wake, time pulse in/out
- Easy integration thanks to optional pin header (2×5 pins, 2 mm pitch)
- Perfect for GNSS or IMU modules from the ANavS M.2 series
Application areas
- Module development and testing
- Evaluation of new GNSS/IMU systems
- Fast system integration via USB-C
- Mobile applications with space-saving design
Technical details
- Pinout: UART TX/RX, Wake, Reset, 3.3V / 5V, Time Pulse In/Out
- Logic level: 1.8V (UART, Wake, Reset), 3.3V/5V supply
- Recommended spacer: Würth PN 977 402 536 0
Compatible ANavS® modules
- MOSAIC GNSS modules (item no. 70.40.0.61.0.0)
- U-blox GNSS modules (item no. 70.40.0.71.0.0)
- IMU adapter (item no. 00.00.0.00.0.0)
Online Ordering
Our products are available at DigiKey and can be ordered online at any time:
Download Datasheet
